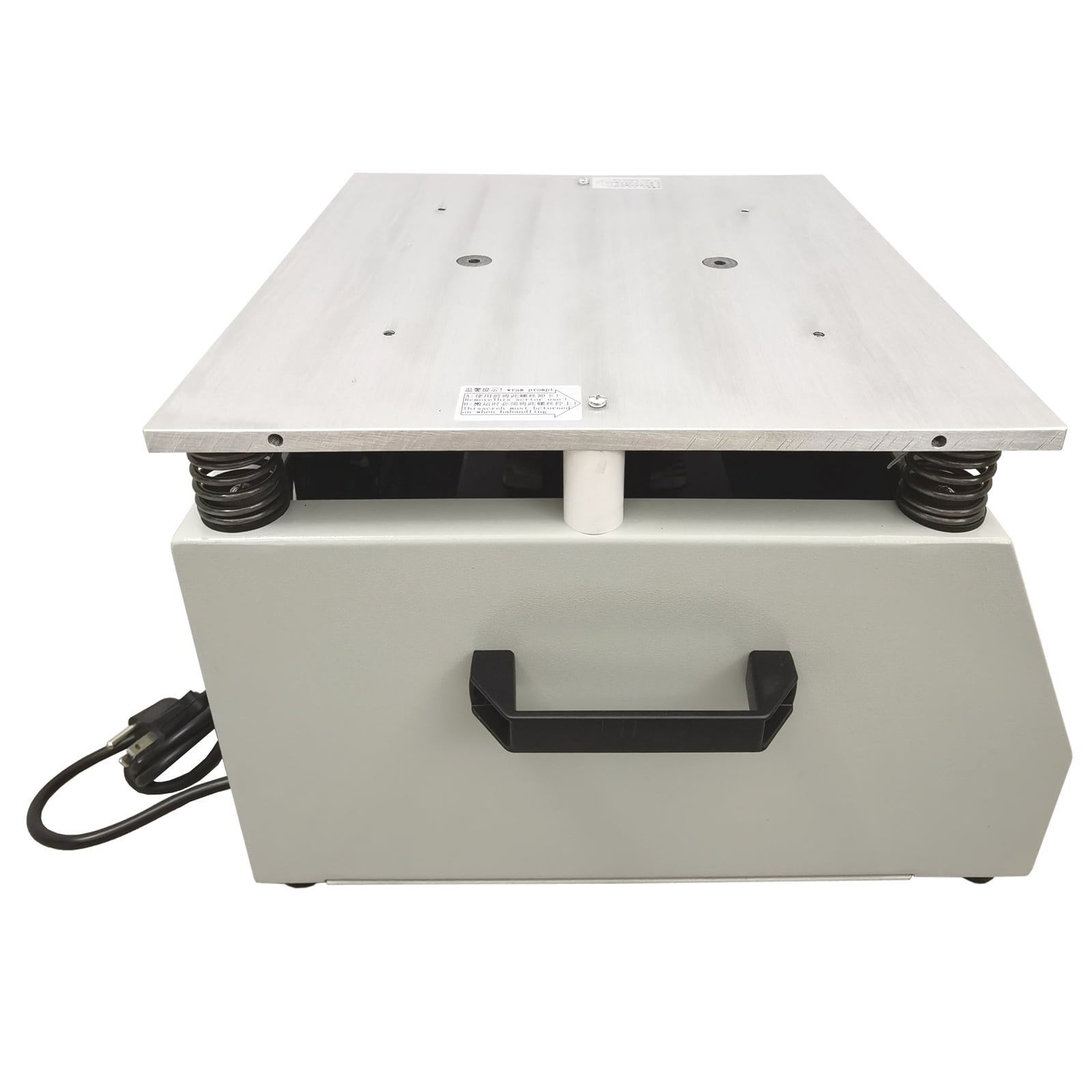

Electromagnetic Vibration Table Electronic Vibration Testing Machine Fixed Frequency

Introduction: <br>Electromagnetic vibration test rig for specific to undergo several times after vibration object to be tested whether can achieve ideal standard of a kind of test, simulation products in manufacturing, assembly, transport and use that occur in the execution phase of various vibration environment, to identify whether products bear the ability of environment vibration, mainly for the circuit boards, electronic components, power will be poor contact, desoldering, false welding, etc. <br> <br>Parameter: <br>Voltage: AC110V <br>Power: 0.9KW <br>No-Load Vibration Amplitude: 0-0.08"(0-2MM) <br>Vibration Frequency: 50HZ <br>Table Size: 15.1"*13.8"(38.5CM*35CM) <br>Vibration Table Material: Antirust Aluminum Plate <br>Vibration Wave: Sine Wave <br>Time Setting: 1 Second-99 Hours <br>Vibration Direction: Vertical <br>Amplitude Monitoring Value: Display 1-100% <br>Time Display: 99H: 99M: 99S <br>Test Load: 88LB(40KG) <br>Operating Environment: 0~+45℃ <br>Control Precision: ±0.1HZ <br>Analytical Precision: 0.01HZ <br>Distribution of Precision: ±0.1HZ <br>Packing Size: 20.5"*18.9"*13.4"(52*48*34) <br>Net Weight/Gross Weight: 73LB(33KG)/84LB(38KG) <br> <br>Items Included: 056592-EnzS <br>110V MP-3000A Electromagnetic Fixed Frequency Vertical Vibration Test Table <br>Instruction Manual*1 <br>Rubber Rope*1 <br>Fixed Screw Hook*4

• Delayed soft start, the amplitude series set at the start is automatically completed within 3 seconds.

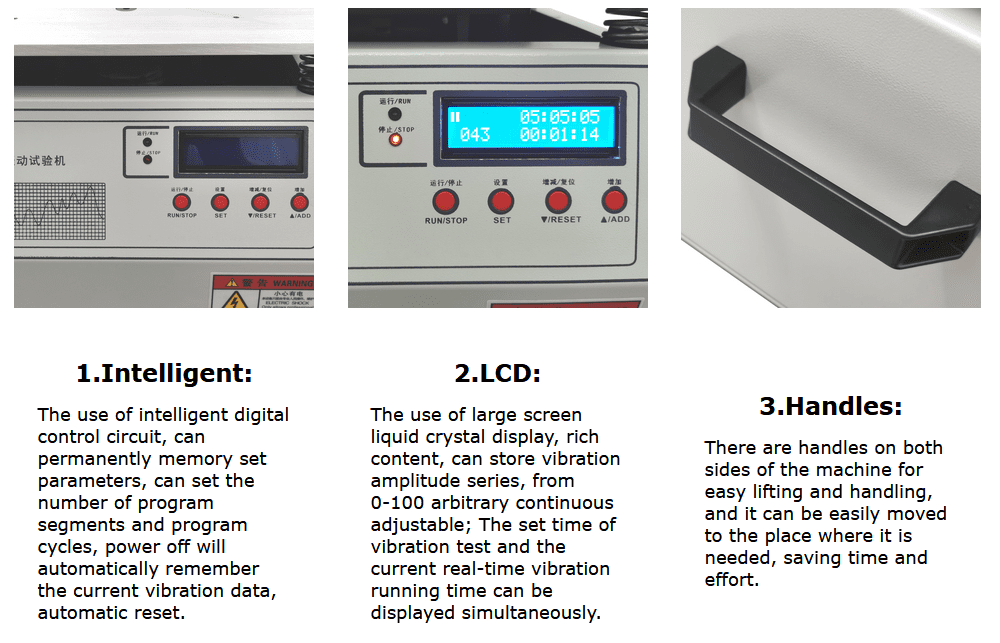

• The use of large screen liquid crystal display, rich content, can store vibration amplitude series, from 0-100 arbitrary continuous adjustable; The set time of vibration test and the current real-time vibration running time can be displayed simultaneously.
• The machine is easy to install and run smoothly. The digital control and display frequency of the control circuit and PID adjustment function make the equipment work stably.
• Fixed frequency operation mode, adapt to the test requirements of different industries, add anti-drying circuit, solve the interference of the control circuit due to strong electromagnetic field; increase the working time setter, so that the test product reaches the accurate test time.
• Electromagnetic vibration table is suitable for aviation, aerospace, communications, electronics, automotive, home appliances, and other industries.
